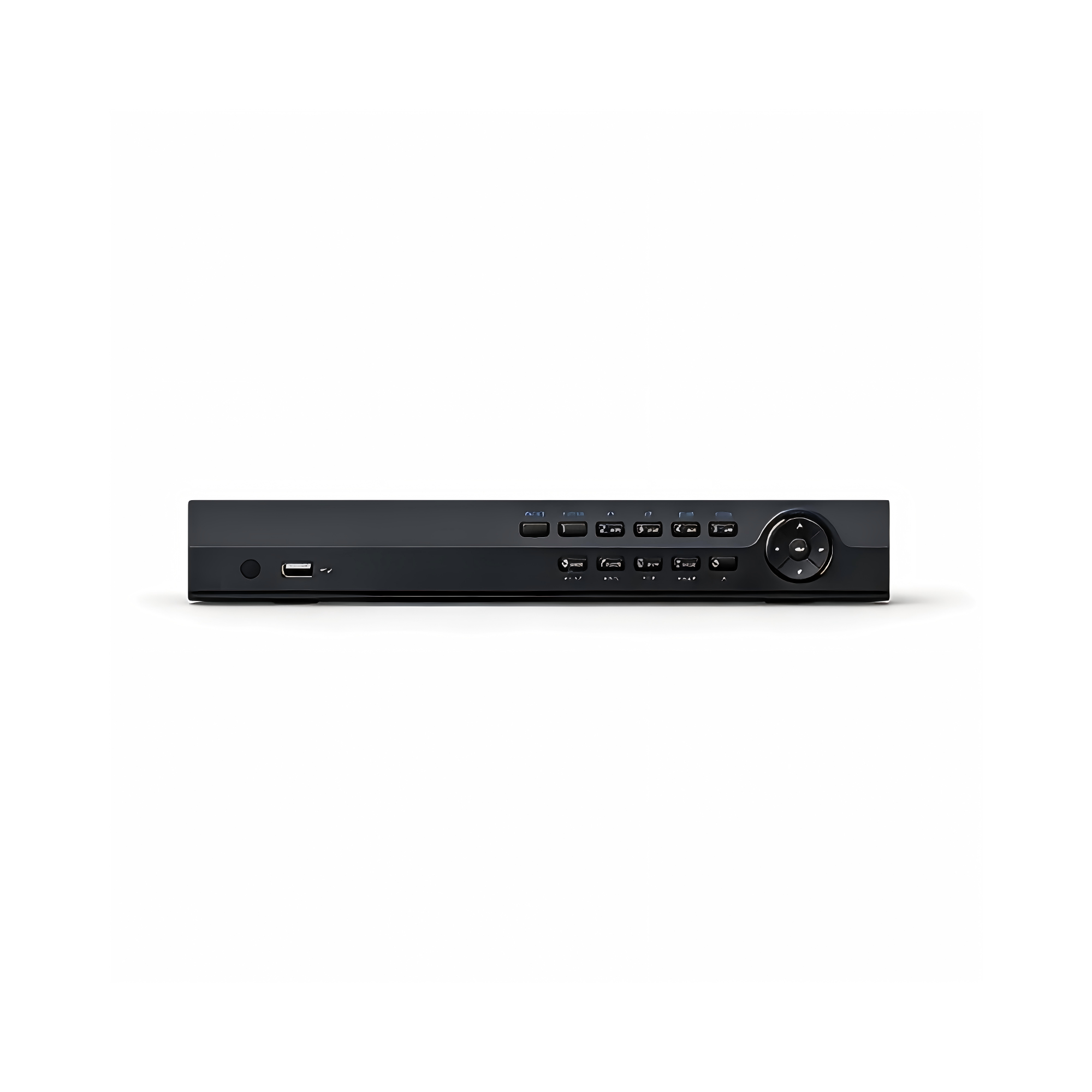

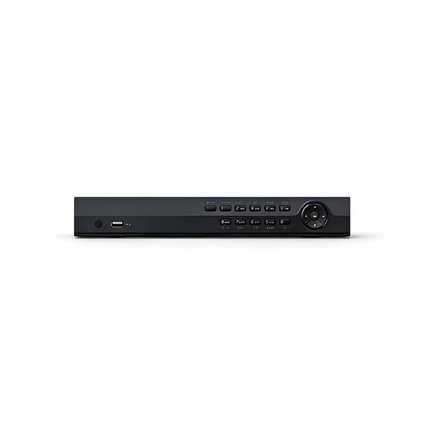

16 Channel 4K 160M 1U 16 POE AcuSense NVR

• Up to 16-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth
• Adopt Acusense technology to minimize manual effort and security costs
• Smart Function:All channels support Motion Detection 2.0
• 2-ch video analysis for human and vehicle recognition to reduce false alarm
• 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
• Smart search for the selected area in the video, and smart playback to improve the playback efficiency

  Channel	16 Channel
  Facial Detection and Analytics	Face picture comparison,human face capture,face picture search
  Face Picture Library	Up to 16 face picture libraries,with up to 20,000 face pictures in total(each picture≤4 MB,total capacity≤1GB)
  Face Picture Comparison	4-ch face picture comparison alarm
  IP Video Input	16-ch
  Incoming Bandwidth	160Mbps
  Outgoing Bandwidth	160Mbps
  HDMI Output	1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
  VGA Output	1-ch,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz
  Video Output Mode	HDMI/VGA independent output
  Audio Output	1-ch,RCA(2.0Vp-p,1KΩ,using the audio input)
  Two-Way Audio	1-ch,RCA(Linear,1KΩ)
  Decoding Format	H.265/H.265+/H.264+/H.264
  Synchronous playback	16-ch
  Interface	16,RJ-4510/100Mbps self-adaptive Ethernet interface
  Power	≤200W
  HDD Support	2 HDD
  Capacity	Up to 10TB capacity for each HDD
  USB Interface	Front panel:1×USB2.0;Rear panel:1×USB2.0
  Power Supply	100 to 240VAC,50 to 60Hz
  Consumption	≤15W(without HDD,and PoE off)
  Dimension(W×D×H)	385mm×315mm×52mm(15.2″×12.4″×2.0″)
  Weight	≤3kg(without HDD,6.6lb.)
