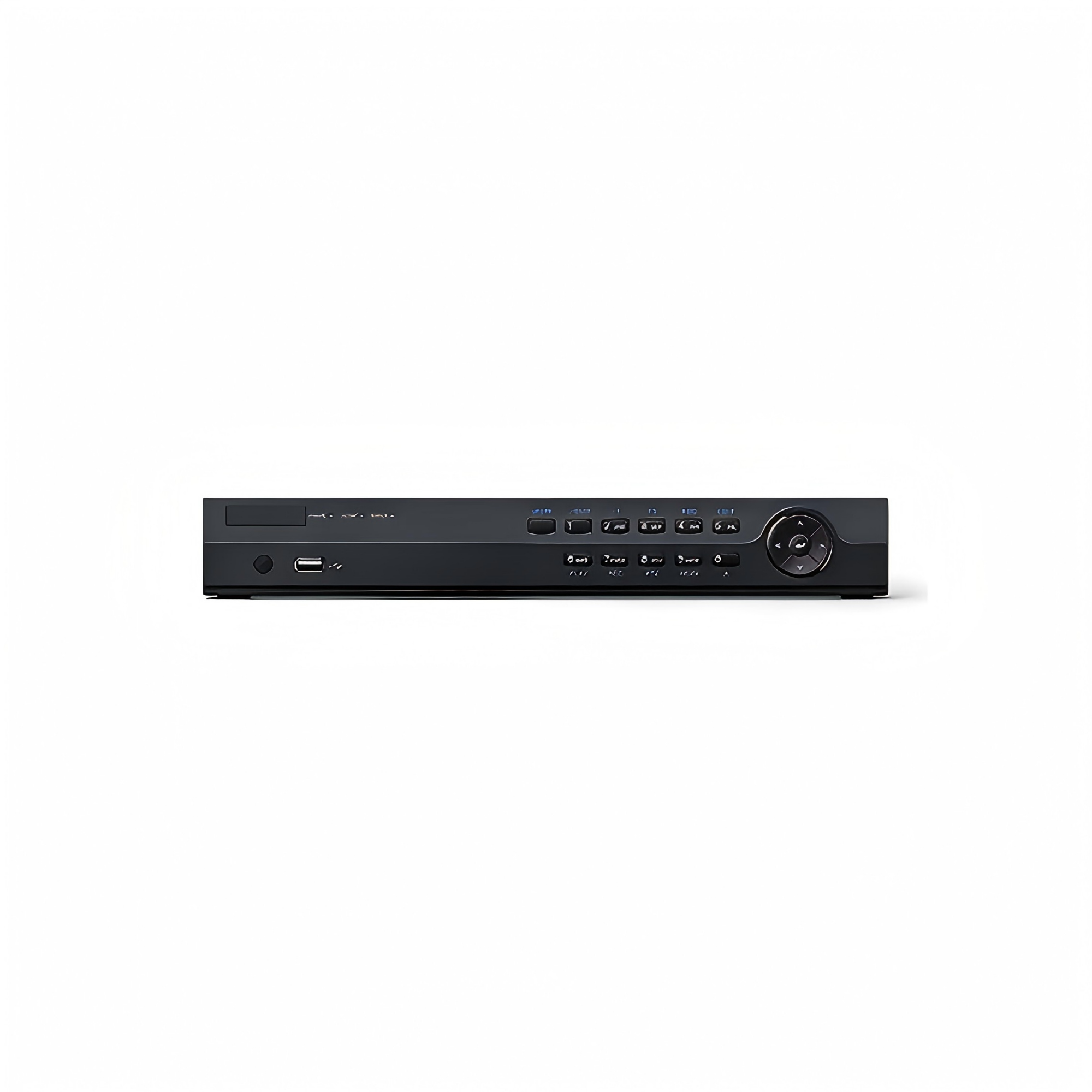

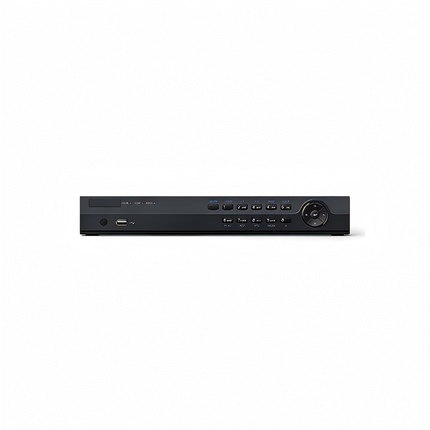

16 Channel 4K 160M 1U Network Video Recorder

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840×2160)
• resolution
• 4-ch network cameras can be connected with
• 40M/60M/80M incoming bandwidth
• Support dual-os to ensure high reliablility of system
• running
• Support various VCA detection alarm and VCA search
• Support H.265/H.264/MPEG4 video formats

  Alarm in/out	4/1 channel
  Audio output(video recorder)	1-ch,RCA (Linear,1 KΩ)
  Capability	2-ch @ 4K,or 8-ch @ 1080p
  Capacity	Up to 6TB capacity for each HDD
  Chassis	385 mm chassis
  Consumption (without hard disks)	≤15 W
  Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
  Dimensions	385 × 315× 52 mm (15.2″ × 12.4″ × 2.0″)
  HDMI output resolution	4K (3840 × 2160)/30Hz,2K (2560 × 1440)/60Hz,1920 × 1080/60Hz,1600 × 1200/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz,1024 × 768/60Hz
  Incoming bandwidth	160 Mbps
  IP Video Input	16-ch
  Network interface (video recorder)	1,RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  Network Protocols	TCP/IP,DHCP,Cloud P2P,DNS,DDNS,NTP,SADP,SMTP,NFS,iSCSI,UPnP™,HTTPS
  Outgoing bandwidth	160 Mbps
  Power	≤ 40 W
  Power Supply	12 VDC
  Recording resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
  HDD Support	2 HDD
  Synchronous Playback	16-ch
  Two-way audio	1-ch,RCA (2.0 Vp-p,1kΩ)
  USB Interface	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
  VGA output resolution	1920 × 1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz,1024 × 768/60Hz
  Weight	≤ 1 kg (2.2 lb)
  Working humidity (video recorder)	10 to 90 %
  Working temperature (video recorder)	-10 to +55ºC (14 to 131ºF )
