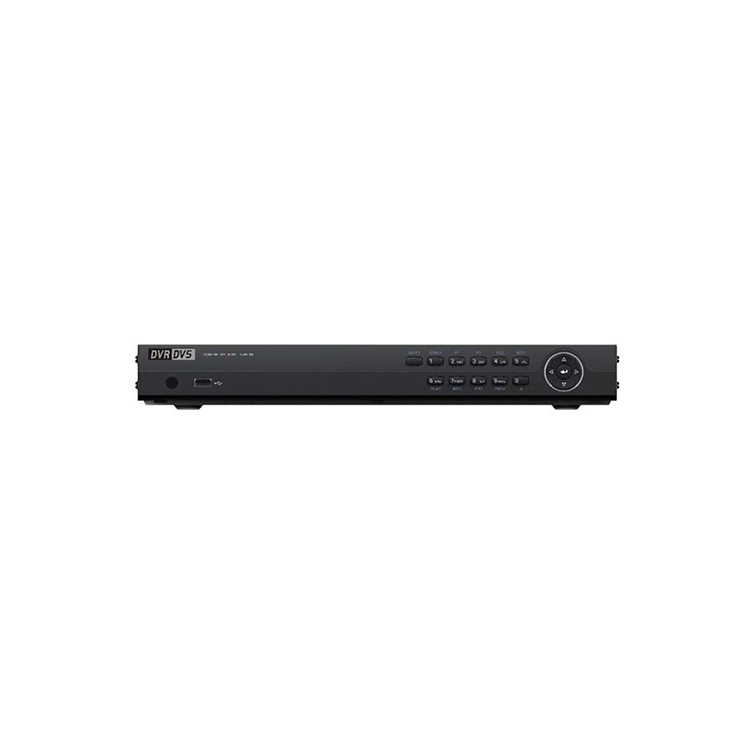

| Model Number |
AR336-16/A |
|
| Video compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
| Analog, AHD, HD-TVI and HD-CVI video input |
16 Ch., BNC interface (1.0Vp-p, 75Ω) |
|
| HDTVI Input |
8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD Input |
5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI Input |
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
|
| CVBS Input |
PAL/NTSC |
|
| IP Video Input |
4CH, Up to 6MP Resolution / 8CH. up to 6MP Enhanced IP Mode (16 IP channel max)/ Supports H.265+/H.265/H.264+/H.264 IP cameras |
|
| Audio compression |
G.711u |
|
| Audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
| Video Output |
1 HDMI, 1 VGA, 1 CVBS |
|
| CVBS Output |
PAL/NTSC |
|
| VGA output |
1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| HDMI output |
4K(3840 x 2160)@30Hz, 2K(2560 x 1440)@60Hz, 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
|
| Encoding resolution |
Up to 8MP @ 8fps for HD-TVI, and up to 6MP @ 20fps for IP camera. |
|
| Frame rate |
Up to 8fps @ 8MP TVI, and 20fps @ 6MP IP camera |
|
| Video bitrate |
32 Kbps to 10 Mbps |
|
| Audio output |
1 Ch., RCA (Linear, 1KΩ) |
|
| Audio bitrate |
64 Kbps |
|
| Dual-stream |
Support |
|
| Stream type |
Video & Audio |
|
| Synchronous playback |
16 Ch. |
|
| Alarm I/O |
N/A |
|
| Remote connections |
128 Streams |
|
| Network protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
| VCA Functions |
Face Detection, Line Crossing, Area Intrusion. Up to 2 Channels Max. |
|
| SATA |
2 SATA interface |
|
| Capacity |
Up to 12TB capacity |
|
| Network interface |
1; 10M / 100M / 1000M self-adaptive Ethernet interface |
|
| Serial interface |
1 x RS-485 serial interface |
|
| USB port |
1 × USB2.0, 1 x USB3.0 |
|
| Power supply |
12 VDC |
|
| Consumption (without hard disks) |
≤ 19W |
|
| Working temperature |
-10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
|
| Working humidity |
10% ~ 90% |
|
| Dimensions |
380 × 320 × 48 mm (15 × 12.6 × 1.9 inch) |
|
| Weight (without hard disks) |
4.6 lb |
