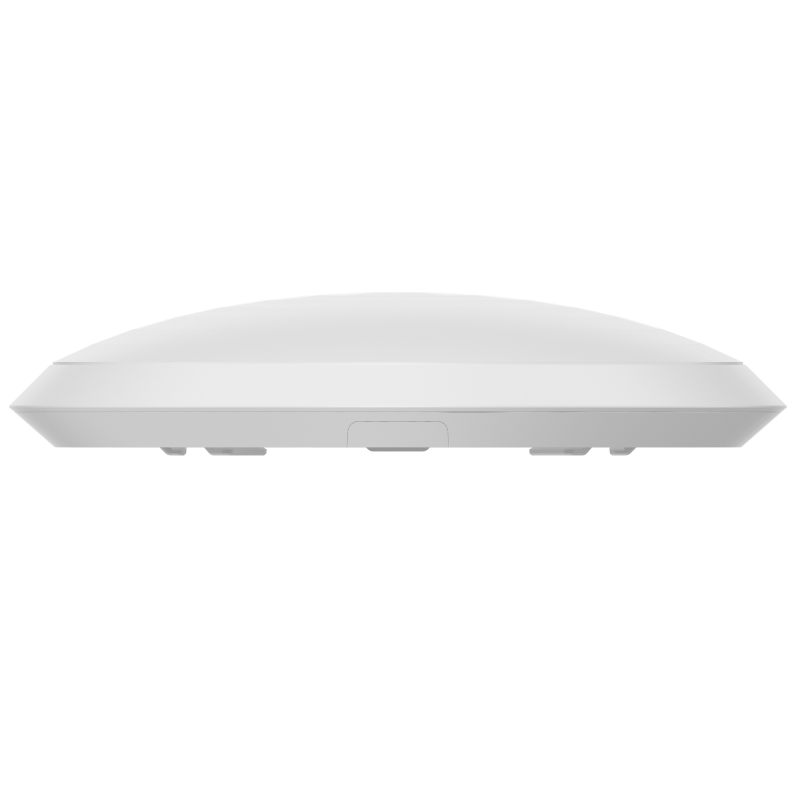

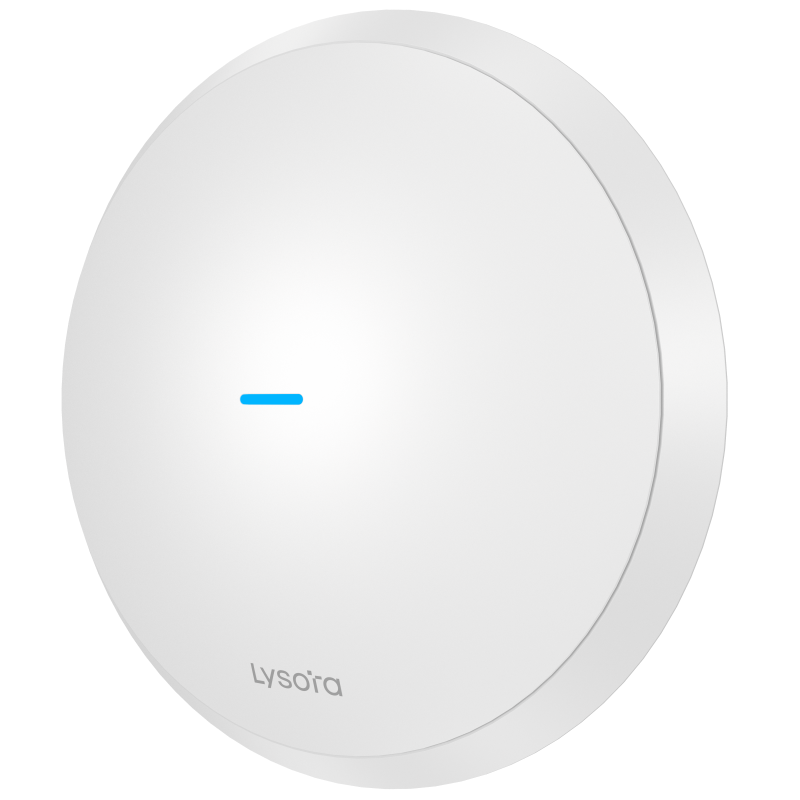

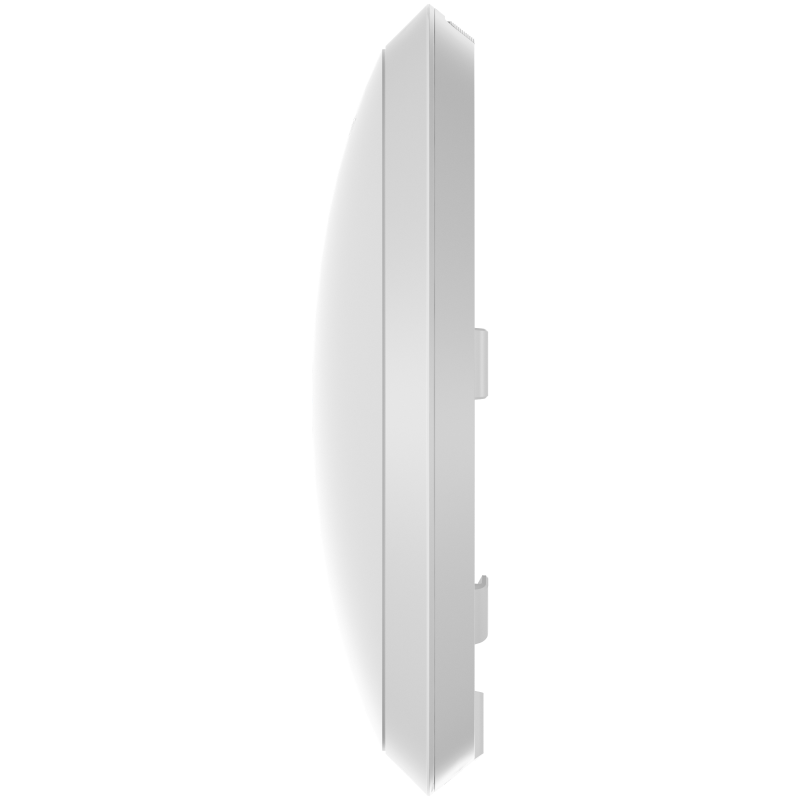

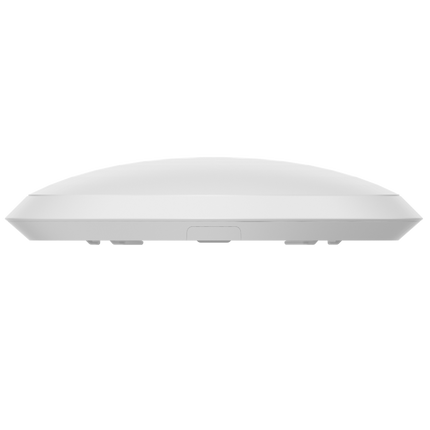

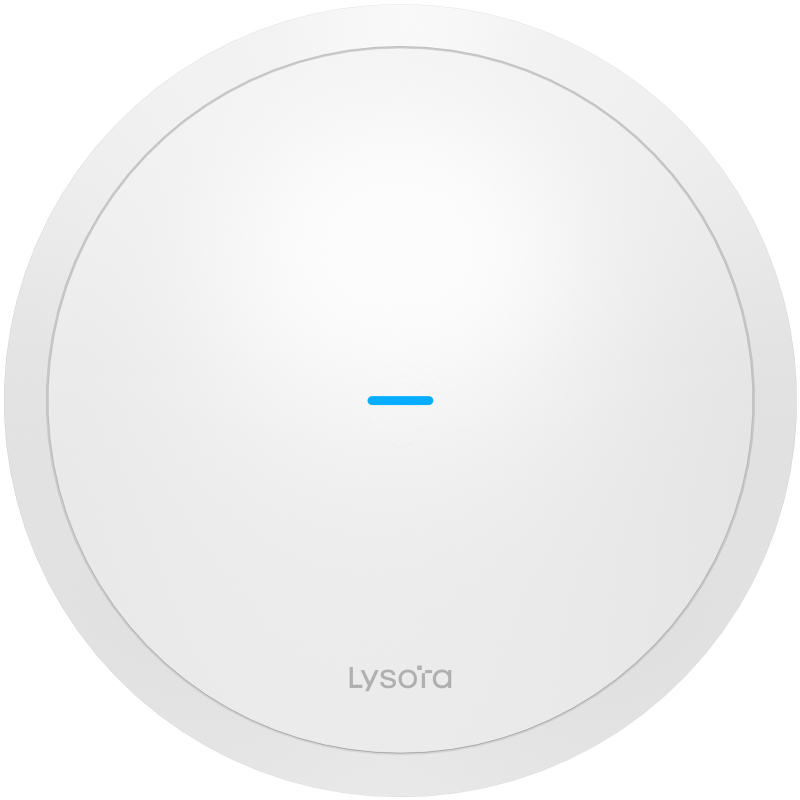

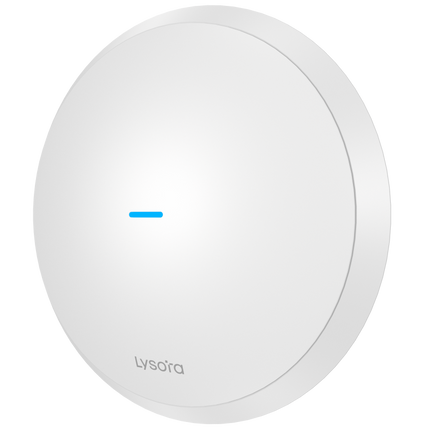

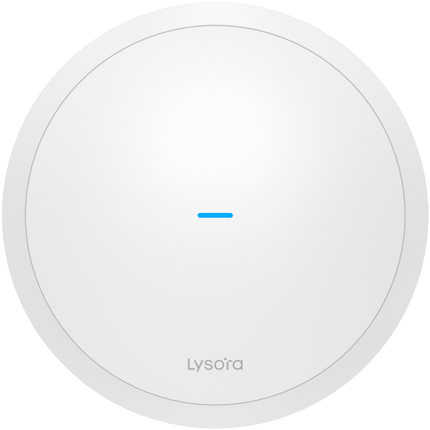

Lysora L7Lite Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point

The Lysora L7Lite is a Wi-Fi 7 BE3600 dual-band ceiling mount access point designed for offices, retail spaces, hospitality, CCTV networks, and business wireless deployments. It supports dual-band 2.4 GHz and 5 GHz Wi-Fi 7, 4 spatial streams, a 2.5GbE uplink port, AP mode, router mode, and centralized cloud management through the Lysora Cloud App.

Key Features

• Wi-Fi 7 BE3600 dual-band ceiling mount access point
• 2.4 GHz and 5 GHz wireless bands
• 4 spatial streams
• 1 x 2.5GbE RJ45 network port
• AP mode and router mode
• Cloud, app, and web management
• 802.3at PoE input and 12V DC power support
• Up to 140 m² / 1,500 ft² coverage area
• Supports 100+ client devices
• Ceiling and wall mounting supported
• MLO, 4K-QAM, RF beamforming, wireless meshing, VLAN, band steering, and roaming support
• NDAA compliant with FCC and IC certification

Best For

• Office Wi-Fi deployments
• Retail and hospitality wireless networks
• Business cloud managed Wi-Fi
• Ceiling mounted access point installations
• Wi-Fi 7 network upgrades
• CCTV and smart building network environments

Technical Specifications

• Model: L7Lite
• Wi-Fi standard: IEEE 802.11 a/b/g/n/ac/ax/be
• Wireless class: BE3600
• Bands: 2.4 GHz and 5 GHz
• Spatial streams: 4
• 2.4 GHz throughput: 688 Mbps
• 5 GHz throughput: 2882 Mbps

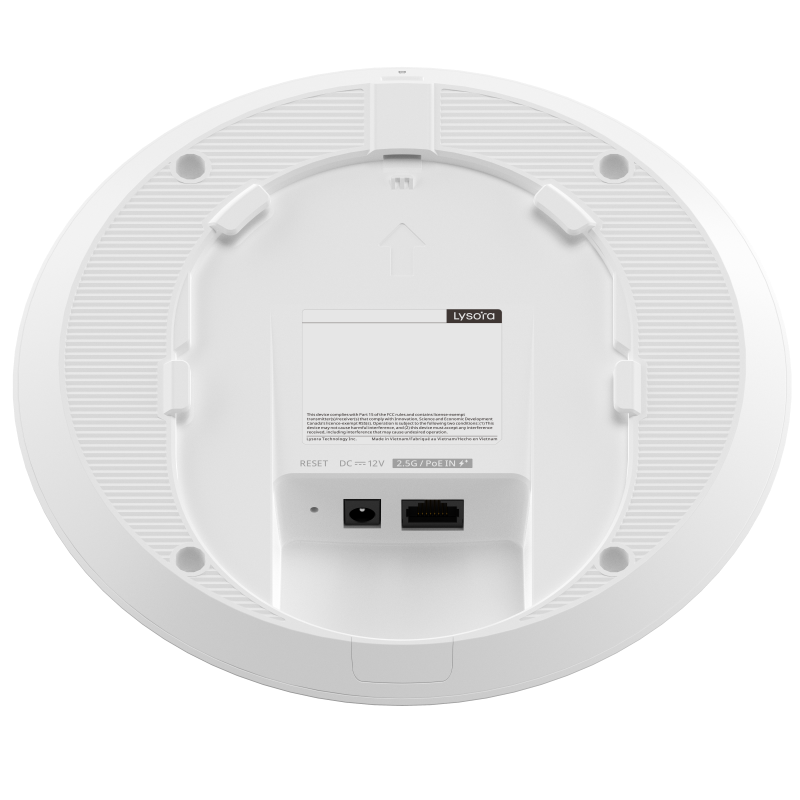

• Network interface: 1 x 2.5GbE RJ45 port
• MIMO: 2.4 GHz 2x2 MU-MIMO; 5 GHz 2x2 MU-MIMO
• Channel bandwidth: 2.4 GHz 20/40 MHz; 5 GHz 20/40/80/160 MHz
• Coverage area: 140 m² / 1,500 ft²
• Max client count: 100+

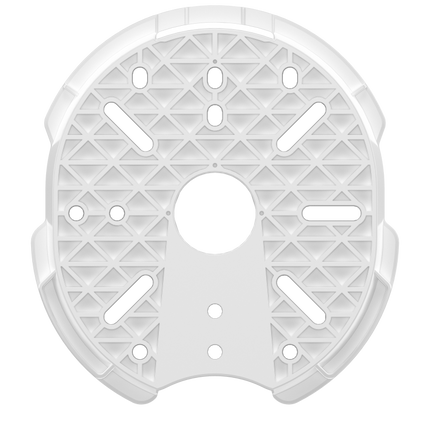

• Mounting: Ceiling or wall, mounts included
• Dimensions: Ø195 x 41 mm
• Weight: ≤ 0.6 kg
• Max power consumption: ≤ 14W
• Power method: PoE or DC 12V / 1.5A
• DC power adapter: Not included
• Operating temperature: 0°C to 40°C
• Weather resistance: IP41
• Surge protection: ±2 kV
• Certifications: FCC, IC
• Compliance: NDAA compliant

Package Contents

• L7Lite access point
• Mounting accessories
