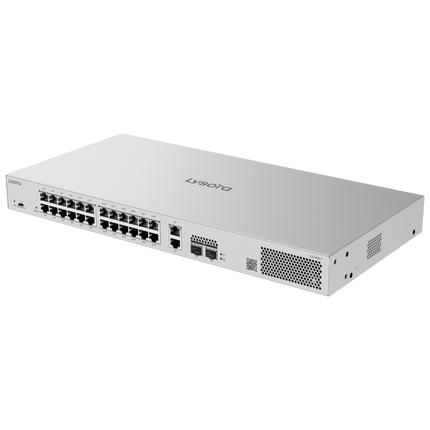

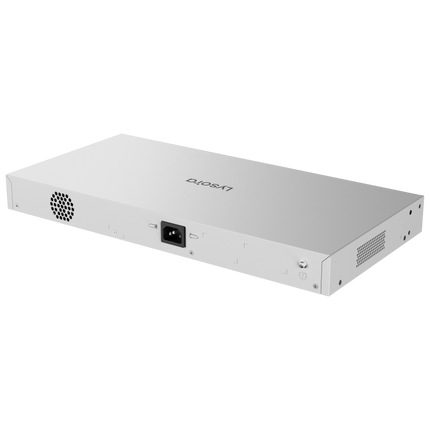

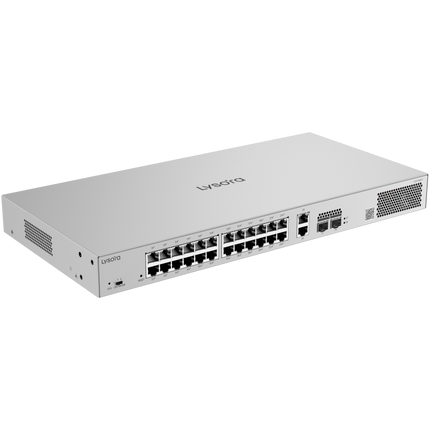

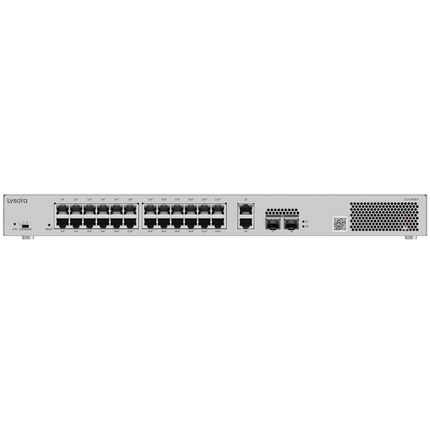

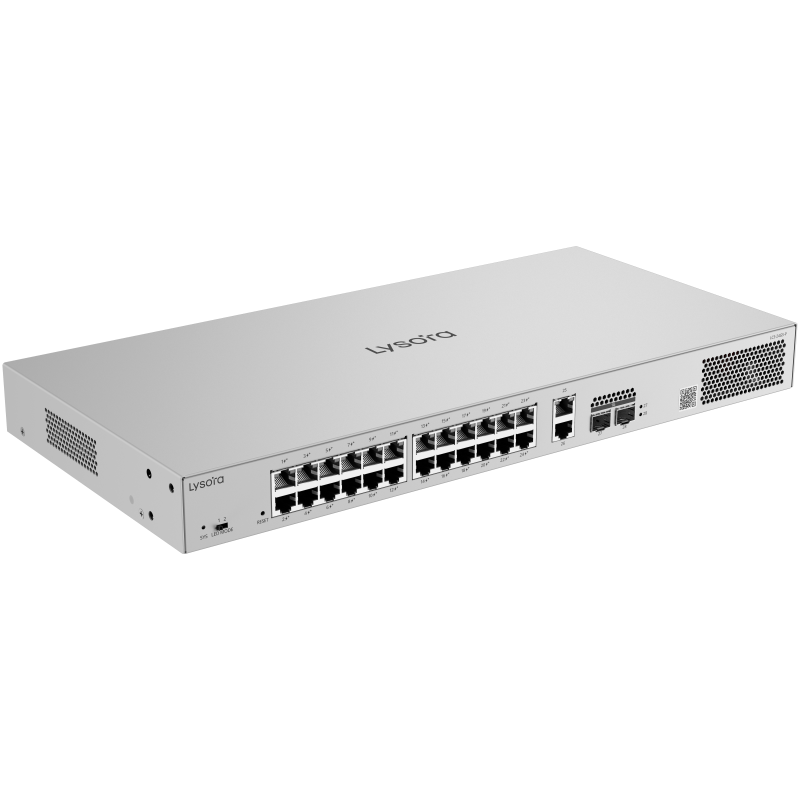

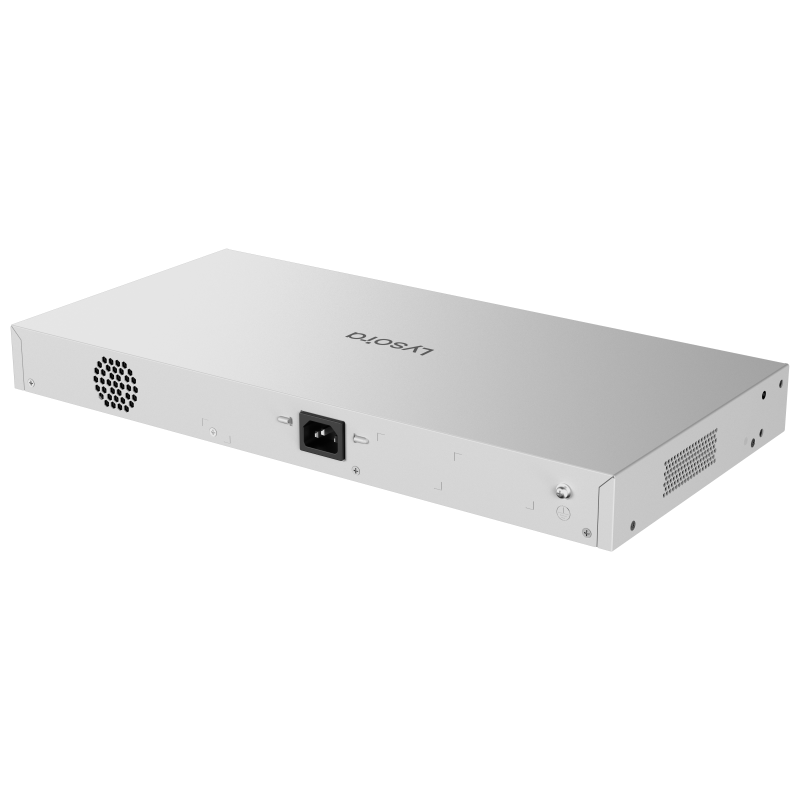

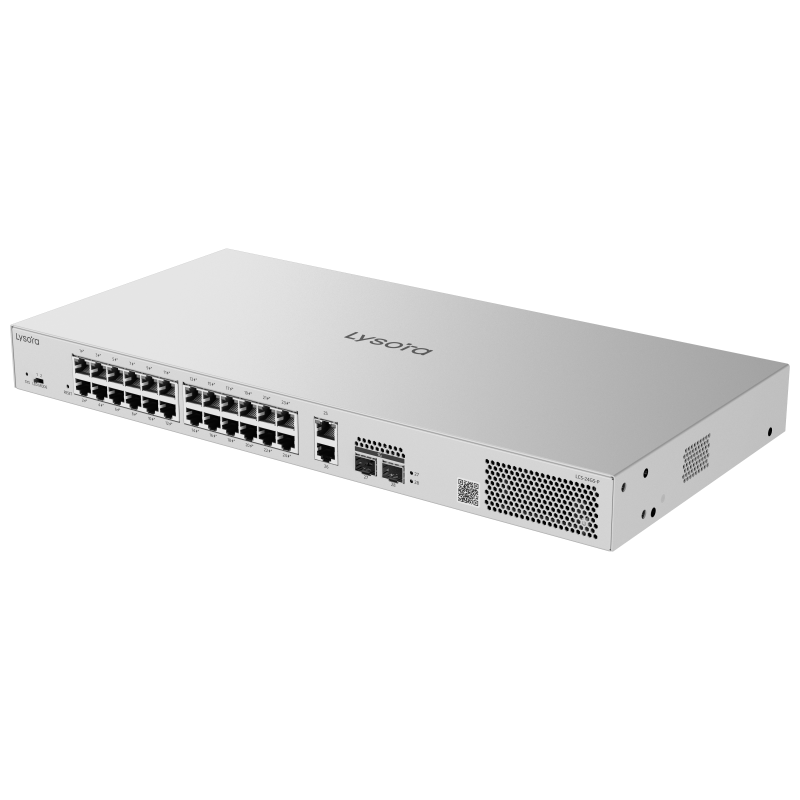

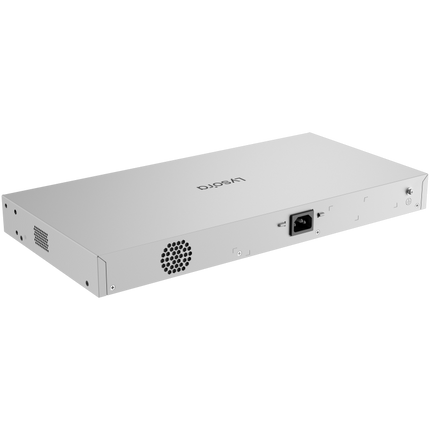

Lysora LCS-24GS-P 24-Port Cloud Managed PoE Switch
The Lysora LCS-24GS-P is a cloud managed PoE switch for CCTV, office, retail, and business network deployments. It provides 24 PoE/PoE+ Gigabit RJ45 ports, 2 Gigabit RJ45 uplink ports, 2 SFP uplink ports, and a 370W total PoE power budget.
Key Features
- 28-port Gigabit smart PoE switch
- 24 PoE/PoE+ Gigabit RJ45 ports
- 2 Gigabit RJ45 uplink ports and 2 SFP uplink ports
- 370W PoE power budget
- Cloud, web, and app management
- PoE watchdog, online upgrade, cable test, and EEE support
- VLAN, port isolation, storm control, DHCP snooping, mirroring, and rate limiting
- Rack-mount metal housing
- NDAA compliant with CE and FCC certification
Best For
- CCTV and IP camera systems
- Office and retail networks
- Managed PoE deployments
- Wireless access point power and uplink aggregation
- Rack-mounted business network installations
Technical Specifications
- Model: LCS-24GS-P
- Ports: 24 PoE/PoE+ Gigabit RJ45 ports, 2 Gigabit RJ45 uplink ports, 2 SFP uplink ports
- Total RJ45 ports: 26
- Optical ports: 2
- PoE budget: 370W
- Switching capacity: 56 Gbps
- Forwarding rate: 41.6 Mpps
- Buffer size: 4.1 Mbit
- MAC address entries: 8,000
- Maximum VLANs: 16
- Jumbo frame: 10,000 bytes
- Power input: 100-240V AC, 50/60 Hz
- Max power consumption: 25W without PoE load; 400W with full PoE load
- Dimensions: 440 x 214.9 x 44 mm
- Weight: 2.84 kg without packaging; 4 kg with packaging
- Mounting: Rack
- Casing: Metal
- Operating temperature: 0°C to 40°C
- Warranty: 3 years
Package Contents
- LCS-24GS-P switch
- User manual
- Warranty card
- 4 rubber pads
- 6 x M4 x 8 mm screws
- 1.8 m power cord
- 2 rack-mount brackets
FAQ
How many PoE ports does it have?
It includes 24 PoE/PoE+ Gigabit RJ45 ports.
What is the total PoE budget?
The switch provides a 370W PoE power budget.
Can this switch be managed remotely?
Yes. It supports cloud management, app management, and web management.
Is it suitable for CCTV deployments?
Yes. It is well suited for IP camera and CCTV networks, with PoE support, camera detection, PoE watchdog, and cloud management.
