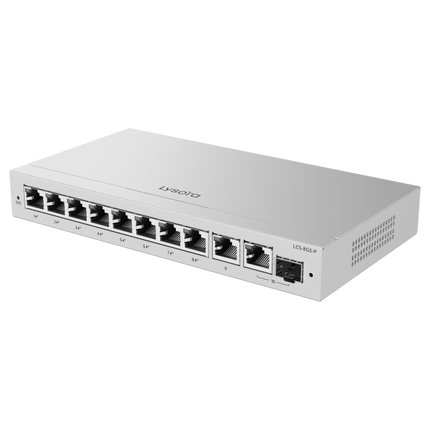

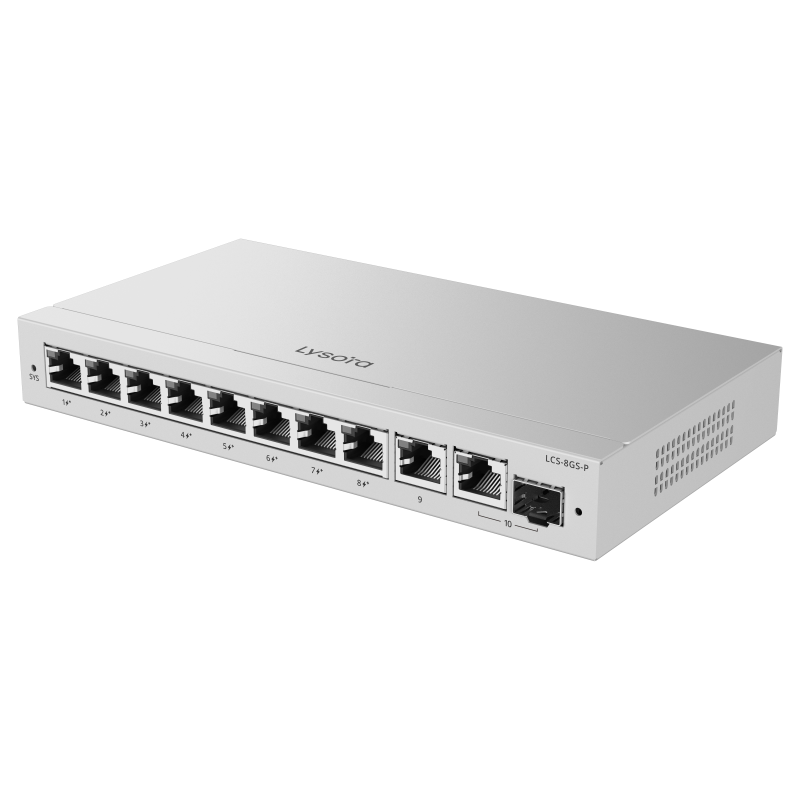

Lysora LCS-8GS-P 8-Port Cloud Managed PoE Switch
The Lysora LCS-8GS-P is a compact cloud managed PoE switch designed for CCTV, office, retail, small business, and managed network deployments. It provides 8 PoE/PoE+ Gigabit RJ45 ports, 1 Gigabit RJ45 uplink port, 1 combo SFP uplink port, and a 120W total PoE power budget.
Key Features
- 10-port Gigabit smart PoE switch
- 8 PoE/PoE+ Gigabit RJ45 ports for powered network devices
- 1 Gigabit RJ45 uplink port and 1 combo SFP uplink port
- 120W PoE power budget
- Cloud, web, and app management
- PoE watchdog, online upgrade, cable test, and EEE support
- VLAN, port isolation, storm control, DHCP snooping, mirroring, and rate limiting
- Fanless design with natural cooling

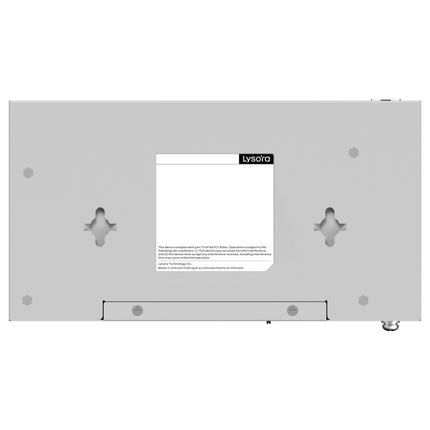

- Compact metal housing for desk or wall mounting
- NDAA compliant with FCC and IC certification
Best For
- CCTV and IP camera systems
- Small office and retail networks
- Compact managed PoE deployments
- Wireless access point power and uplink aggregation
- Desk or wall-mounted business network installations
Technical Specifications
- Model: LCS-8GS-P

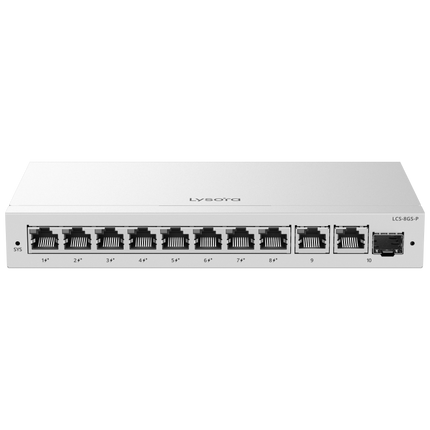

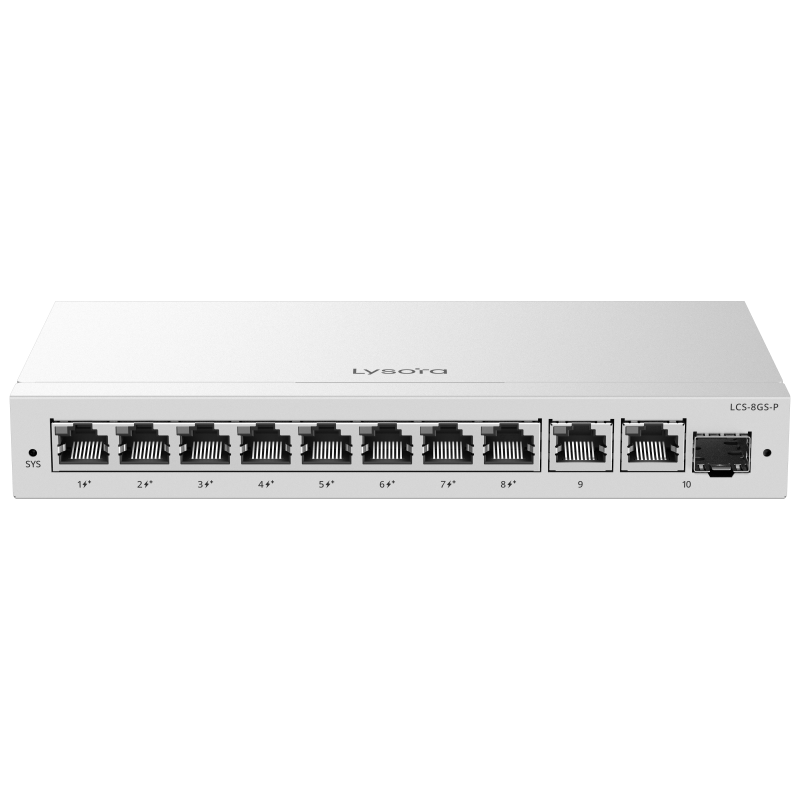

- Ports: 8 PoE/PoE+ Gigabit RJ45 ports, 1 Gigabit RJ45 uplink port, 1 combo SFP uplink port
- Total RJ45 ports: 10
- Optical ports: 1
- 1GE combo ports: 1
- PoE budget: 120W
- Switching capacity: 20 Gbps
- Forwarding rate: 14.8 Mpps
- Buffer size: 1.5 Mbit
- Flash memory: 4 MB
- Power method: DC power adapter
- Power input: 100-240V AC, 50/60 Hz
- Power output: 54V DC, 2.4A
- Max power consumption: 10W without PoE load; 130W with full PoE load
- Dimensions: 202 x 108 x 28 mm
- Weight: 0.55 kg without packaging; 1.65 kg with packaging

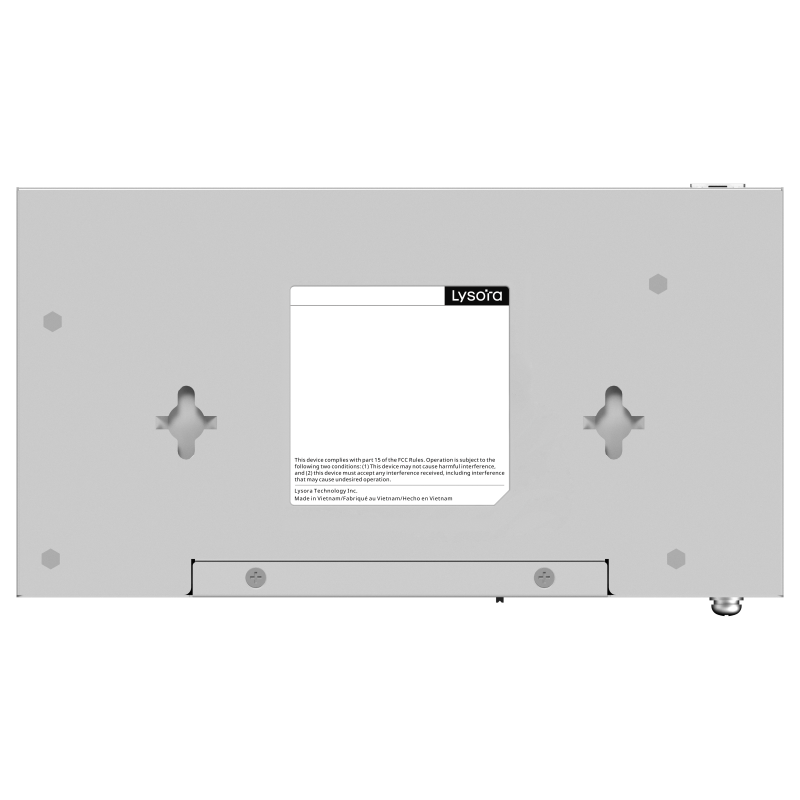

- Mounting: Wall / Desk
- Casing: Metal
- Fan: Fanless design
- Cooling: Natural cooling
- Operating temperature: 0°C to 40°C
- Warranty: 3 years
Package Contents
- LCS-8GS-P switch
- User manual
- Warranty card
- 1 x 1 m power cord
FAQ
How many PoE ports does it have?
It includes 8 PoE/PoE+ Gigabit RJ45 ports.
What is the total PoE budget?
The switch provides a 120W PoE power budget.
Can this switch be managed remotely?
Yes. It supports cloud management, app management, and web management.
Is it suitable for CCTV deployments?
Yes. It is well suited for IP camera and CCTV networks, with PoE support, camera detection, PoE watchdog, and cloud management.
Is it fanless?
Yes. The LCS-8GS-P uses a fanless design with natural cooling.
