Descripción

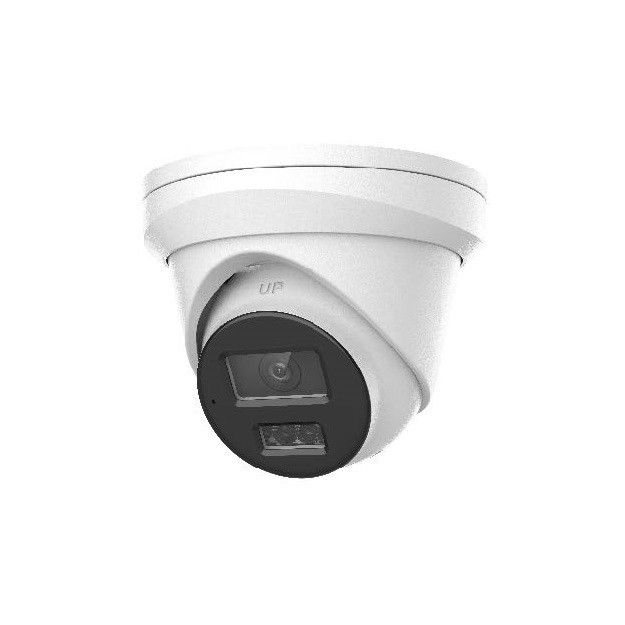

NC224G2-XD/LU 4 MP Smart Hybrid Light Turret Network Camera

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone for real-time audio security
• Support on-board storage up to 512 GB (SD card slot) (Optional)
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)

  Product Overview

  The NC224G2-XD/LU delivers clear and reliable surveillance with 2560 × 1440 high-resolution imaging. Featuring Smart Hybrid Light technology and human and vehicle detection, it enhances monitoring accuracy in various environments. With built-in audio recording, H.265+ compression, and IP67 weather protection, the camera provides efficient and dependable security performance.

  Key Features

  • 4 MP High-Quality Imaging: Captures clear video with 2560 × 1440 resolution for detailed monitoring.
  • Human & Vehicle Detection: Supports intelligent detection to identify human and vehicle targets for more focused security monitoring.
  • Smart Hybrid Light Technology: Advanced lighting technology designed to provide long-range illumination for improved visibility in low-light environments.
  • Built-in Microphone for Audio Security: Equipped with a built-in microphone to capture real-time audio alongside video footage.
  • On-board Storage Support: Supports microSD card storage up to 512 GB (optional) for local video recording.
  • Efficient H.265+ Compression: Reduces bandwidth and storage usage while maintaining video quality.
  • Weather-Resistant Design: Rated IP67 for water and dust resistance, making it suitable for outdoor installations.
  • Low-Light Performance: Minimum illumination of 0.005 Lux (Color) and 0 Lux with IR, enabling monitoring in very low-light conditions.
  • Flexible Installation: Supports pan 0°–360°, tilt 0°–75°, and rotation 0°–360° for easier camera positioning.

  • Image Sensor	1/3″ Progressive Scan CMOS
    Minimum Illumination	Color: 0.005 Lux@(F1.6,AGC ON),B/W: 0 Lux with IR
    Shutter Speed	1/3 s to 1/100000 s
    Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
    Lens Type	Fixed Lens
    Lens Size	2.8mm
    Lens Mount	M12
    SmartSupplementLight	Yes
    Wavelength	850nm
    Max. Resolution	2560 × 1440
    Video Bit Rate	32 Kbps to 8 Mbps
    Power	12VDC±25%,0.4A,max.5W,Ø5.5mm coaxial power plug,reverse polarity protection,PoE:IEEE802.3af,Class3,max.6.5W
    Power Consumption and Current	IEEE802.3af,Class3,max.6.5W
    Camera Material	Metal & Plastic
    Package Dimension	110 mm × 89.2 mm (4.3″ × 3.5″)
    With Package Weight	Approx.560g(1.2lb.)

Especificaciones

• Weight: 200gr
• Usage: Indoor & outdoor

Ventajas y desventajas

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
