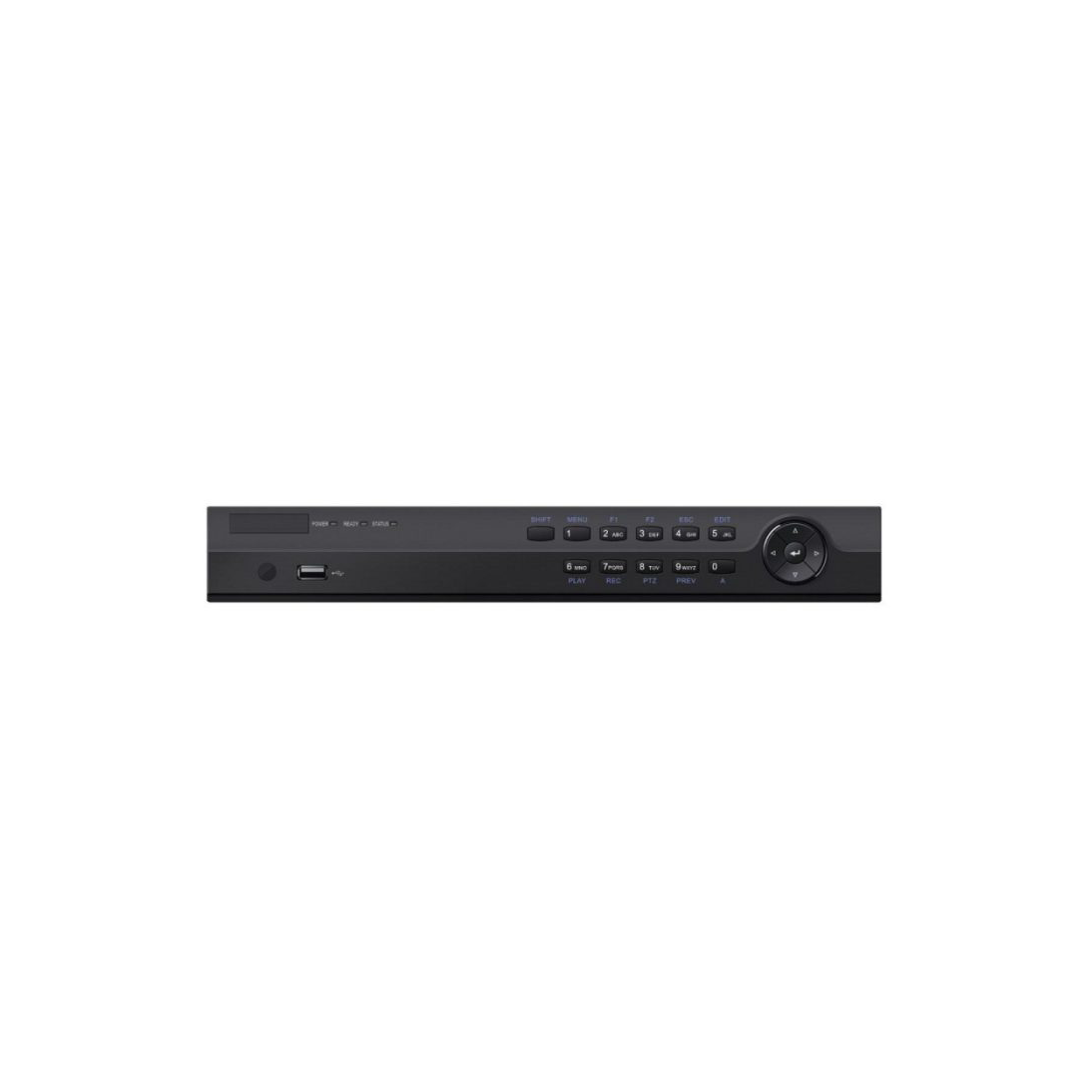

16-ch 2 SATA 1U 16 PoE 4K NVR

Key Feature

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%

HD Video Output

• Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
• Smart search/smart playback to improve the playback efficiency

Smart Function

• 4-ch Motion Detection 2.0
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)

Network & Ethernet Access

• 16 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Guarding Vision for easy network management

  Channel	16 Channel
  IP Video Input	16-ch
  Incoming Bandwidth	160Mbps
  Outgoing Bandwidth	80Mbps
  HDMI Output	1-ch,4K(4096×2160)/30Hz,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz,1920x 1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz
  Video Output Mode	HDMI/VGA simultaneous output
  Audio Output	1-ch,RCA(Linear,1K惟)
  Decoding Format	H.265+,H.265,H.264+,H.264
  Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  Synchronous playback	16-ch
  Decoding Capability	1-ch@8MP(30fps)/3-ch@4MP(30fps)/6-ch@1080p(30fps) *:The length or width of camerare solution(each track)cannot exceed 4096 pixels.
  Interface	16,RJ-4510/100Mbps self-adaptive Ethernet interface
  Power	≤150W
  Standard	IEEE802.3af/at
  HDD Support	2 HDD
  USB Interface	2×USB2.0
  Power Supply	100 to 240VAC,50to60Hz
  Consumption	≤ 15W(without HDD and PoE off)
  Dimension(W×D×H)	385×315×52mm(15.2″×12.4″×2.0″)
  Weight	≤ 2.6 kg (without HDD,5.7 lb.)
