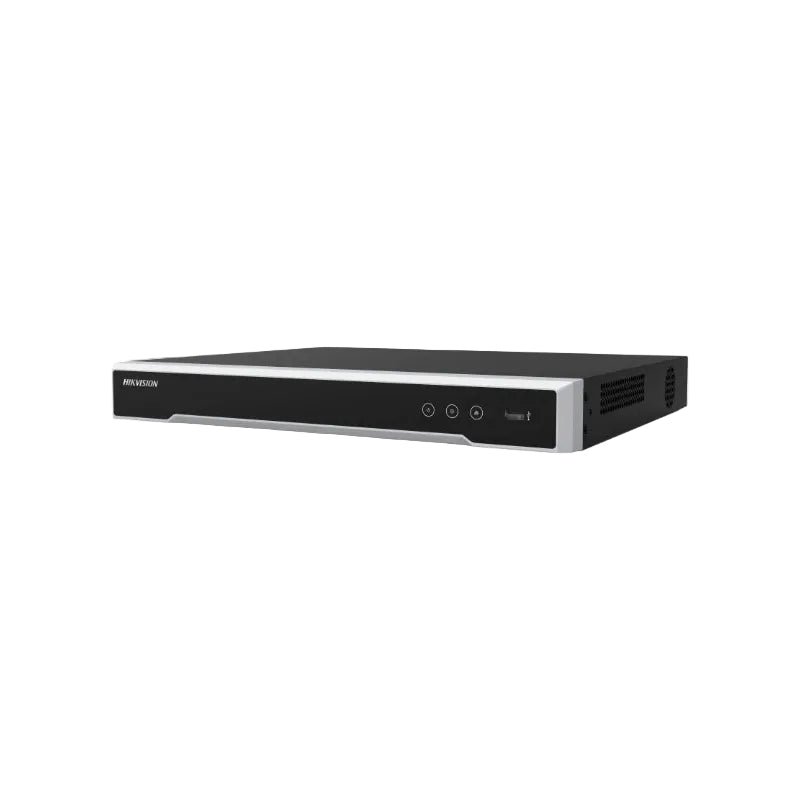

16-ch 1U 16 PoE 4K NVR Up to 16-ch IP camera inputs H.265+/H.265/H.264+/H.264 video formats Up to 1-ch @ 8MP... Leer más...
$299.00 Sin IVA
Guaranteed secure & safe checkout.
Easily pay within 30 days after you have received your package.
Read more
| Specification | Details |
|---|---|
| IP Video Input | 16-ch |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Decoding Format | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 16-ch |
| Decoding Capability | 1-ch@8MP (30fps) / 3-ch@4MP (30fps) / 6-ch@1080p (30fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw / G.711alaw / G.722 / G.726 |
| Remote Connection | 32 |
| API | ONVIF (profile S/G), SDK, ISAPI |
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE Interface | 16 × RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| PoE Power | ≤ 150W |
| PoE Standard | IEEE 802.3 af/at |
| SATA | 2 SATA interfaces |
| HDD Capacity | Up to 8TB for each disk |
| Alarm In/Out | N/A (4/1 optional) |
| USB Interface | 2 × USB 2.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤ 15W (without HDD and PoE off) |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% |
| Chassis | 1U chassis |
| Dimensions | 385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight | ≤ 2.6kg (without HDD) |
| Certification | FCC Part 15 Subpart B, ANSI C63.4-2014, CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:2017 |
