| Model |
PCI-D12Z2S |

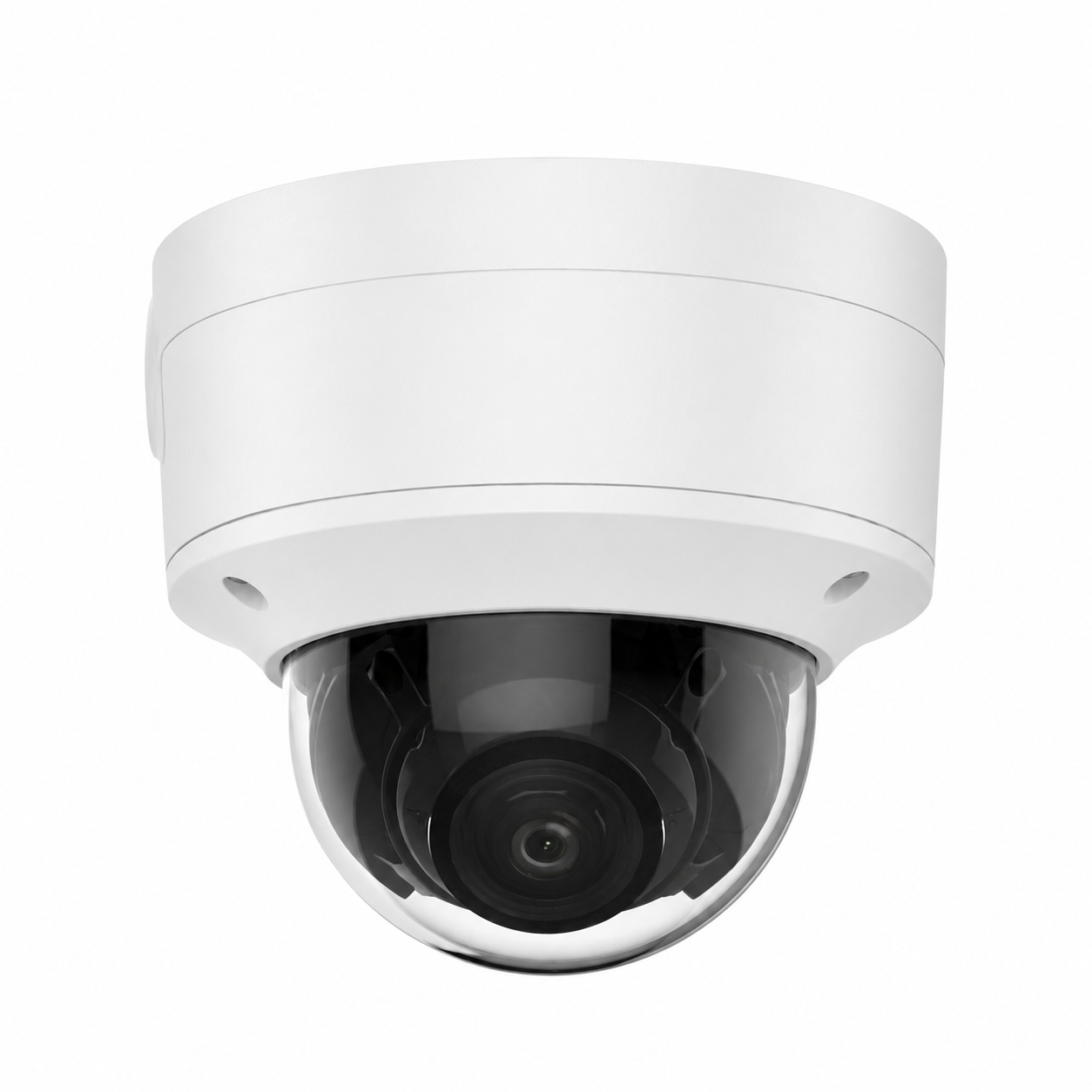

| Camera Type |
Dome Network Camera |
| Resolution |
2MP, up to 1920 × 1080 |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Lens |
Motorized varifocal 2.7–13.5 mm |
| Aperture |
F1.4 |
| Field of View |
Horizontal 112.5°–34°, Vertical 57.2°–18.9°, Diagonal 138.1°–39.1° |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Max Frame Rate |
Up to 60fps at 1080P |
| Low-Light Technology |
Powered-by-DarkFighter |
| Minimum Illumination |
0.002 Lux @ F1.4, AGC on; 0 Lux with IR |
| Wide Dynamic Range |
True WDR supported |
| IR Distance |
Up to 131 ft / 40 m |
| IR Wavelength |
850 nm |
| Noise Reduction |
3D DNR |
| AI Detection |
Human and vehicle target classification based on deep learning |
| Image Functions |
Auto gain control, automatic white balance, backlight compensation, privacy masking, mirror, day/night |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ISUP, ARP |
| Power Supply |
12 VDC or PoE IEEE 802.3af |
| Power Consumption |
12 VDC: max. 11 W; PoE: max. 12.9 W |
| Ingress / Impact Protection |
IP67 weather-resistant, IK10 vandal-resistant |
| Operating Temperature |
-30°C to 60°C / -22°F to 140°F |
| Operating Humidity |
95% or less, non-condensing |
| Dimensions |
Ø153.5 mm × 133.1 mm / 6.0 in × 5.2 in |
| Mount Type |
Ceiling or wall mount |
| Connection Type |
Wired network IP |
| Color |
White |
