AC346D-VB4Z 5 MP Ultra-Low Light Camera 5 MP high performance CMOS Auto focus 2560 × 1944 resolution 2.7 mm to... Read more

Free pickup in our shop(s) Free pickup in our shop(s)

2 in stock Next day delivery

$149.00 Excl. VAT

Guaranteed secure & safe checkout.

Shipped today? Order within: Jul 14, 2026 23:59:00 -0700

Free shipping on all orders above 50,00

No hassle returns, 30 days return

Pay whenever you want

Easily pay within 30 days after you have received your package.
Read more

Description

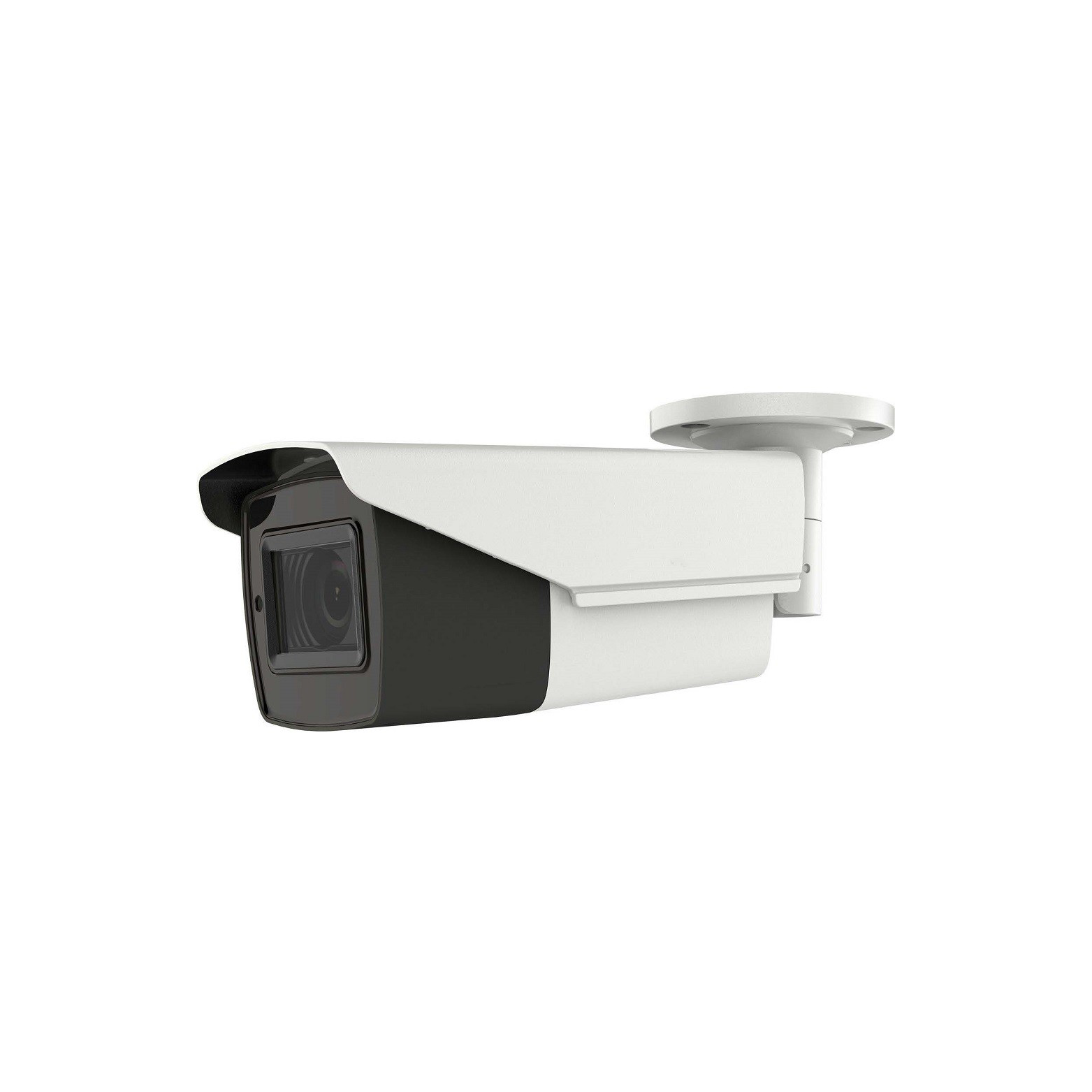

AC346D-VB4Z 5 MP Ultra-Low Light Camera

5 MP high performance CMOS
Auto focus
2560 × 1944 resolution
2.7 mm to 13.5 mm motorized varifocal lens
EXIR 2.0, smart IR, up to 80 m IR distance
OSD menu, 3D DNR, 130 dB true WDR
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67
Up the coax (UTC‐C)

AGC	Yes
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
BLC	Yes
Communication	Up the coax,Protocol: UTC‐C (TVI output)
Day & Night	Auto/Color/BW (Black and White)
Dimensions	84.5 mm × 92 mm × 255.1 mm (3.33″ × 3.62″ × 10″)
Digital Noise Reduction	Level 1 to 9
Frame Rate	TVI: 2 MP@25fps,2 MP@30fps,4 MP@25fps,4 MP@30fps,5 MP@20fps AHD: 4 MP@25fps,4 MP@30fps,5 MP@20fps CVI: 4 MP@25fps,4 MP@30fps CVBS: PAL,NTSC
Functions	Brightness,Sharpness,3D DNR,Mirror,Smart IR
Horizontal Field of View	92.3° to 29.3°
Horizontal Resolution	2560 (H) × 1944 (V)
Image Sensor	5 megapixel progressive scan CMOS
IR Range	Up to 80 m
Language	English
Lens Size	2.7-13.5mm
Lens Mount	Φ14
Material	Metal
Min. Illumination	Color: 0.003 Lux @ (F1.2,AGC ON),0 Lux with IR
Motion Detection	4 programmable areas
Operating Conditions	‐40 °C to 60 °C (‐40 °F to 140 °F),humidity: 90% or less (non‐condensing)
Power Consumption	‐A: Max. 10.5 W
Power Supply	‐A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
Privacy Masking	4 programmable privacy masks
Protection	IP67
Shutter Time	PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Signal System	PAL/NTSC
Switch Button	TVI/AHD/CVI/CVBS
Synchronization	Internal synchronization
Video Output	1 HD analog output
WDR	Yes
Weight	Approx. 930 g (2.05 lb.)
White Balance	Auto/Manual
Wide Dynamic Range	≥ 130 dB
Lens Type	Motorized Lens

Specifications

Weight: 200gr
Usage: Indoor & outdoor
