MODLE
|
BC-IE352DW-8MS-PM
|
|
Features
|

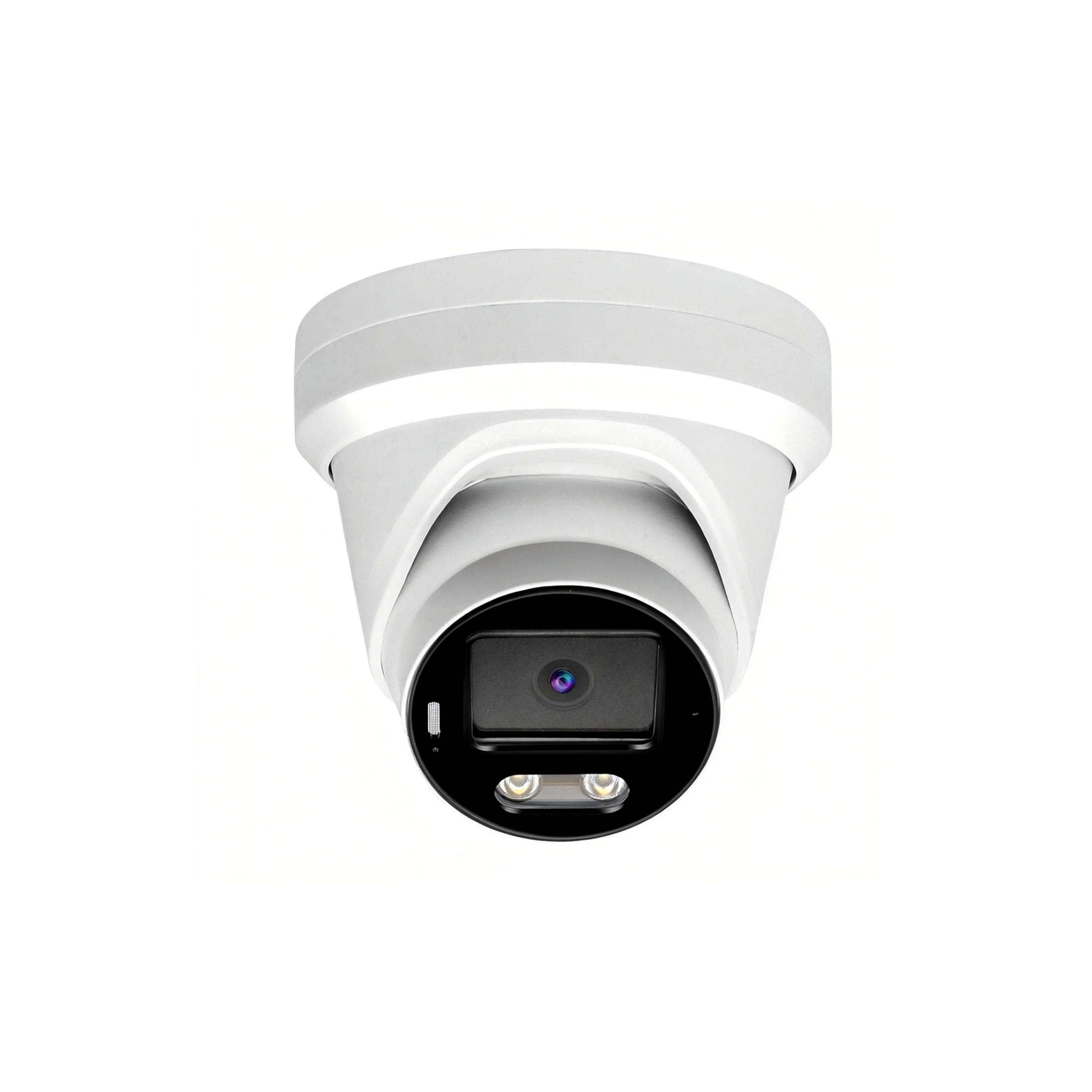

• H.265/H.264 8MP IP/Network Dual Light Turret Camera
• Up to 8 megapixel high resolution
• Max. 3840*2160@20fps(50Hz/60Hz)
• Support RTSP&Onvif(17.2 with profile S)
Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT,
D-WDR,Mirror, Image Flip etc. Functions
• 3.6mm fixed lens
• Water-proof: IP66
|
|
Configurable information
|
• 12V DC&PoE
• Built in mic
|
|
Image Sensor:
|
1/2.8''Sony415 CMOS
|
|
Signal System:
|
PAL/NTSC
|
|
Min. Illumination:
|
Color: 0.05lux @(F1.6 AGC ON), 0 lux with IR or light
|
|
Shutter Time:
|
1/25 s to 1/10,000 s
|
|
Lens:
|
3.6mm fixed lens
|
|
Day&Night:
|
2pcs Dual light
|
|
Image Enhancement:
|
BLC/3D DNR/WDR
|
|
Motion Detection:
|
Support
|
|
Privacy Protection:
|
Support(4 Self-customized Areas)
|
|
Smart function:
|
Humanoid detection,Vehicle detection
|
|
Illumination for Infrared Switching:
|
0.5~3Lux
|
|
Infrared Wavelength:
|
850nm
|
|
Mimimum Illumination:
|
0 Lux(IR ON)
|
|
LED Light Distance
|
2pcs Dual light(IR 20m/white light 15m)
|
|
Wather-Proof:
|
IP66
|
|
Compression Standard
|
|
Video Compression:
|
H.265/H.264/MJPEG
|
|
Video Bit Rate:
|
512Kbps~12288Kbps(main stream H.265)
64kbps~1024kbps(sub stream H.265)
64kbps~2048kbps(thr stream H.265)
|
|
Dual Streams:
|
Yes
|
|
Triple Streams:
|
Yes
|
|
|
|
Image Resolution:
|
main stream:3840*2160(8MP)/2592x1944(5MP)//1920x1080(1080p)
sub stream:720x480(D1)/640x480(VGA)/640x360/352x288(CIF)
|
|
Frame Rate:
|
main stream:20fps(8MP) max.
sub stream:25fps max
|
|
Stream:
|
three streams
|
|
Image Settings:
|
3D NR,WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness
adjustable via client software, web browser or Smartphone App
|
|
Day/Night mode
|
EXT/Day/Night/Auto/Time
|
|
Audio
|
|
Audio Compression:
|
G711U/G711A/AAC
|
|
Audio Bitrate
|
64K(G711)/16k(AAC)
|
|
Audio In/Out：
|
Optional (RCA socket)
|
|
Build-in MIC：
|
Yes
|
|
Network
|
|
Network Protocols:
|
Http/Https, TCP/IP, IPv4/v6, UPNP, RTSP/RTMP,FTP, UDP, SMTP, NTP, DHCP, DNS,
DDNS,IP Search(Support P2P, NVR, NVS etc.)
|
|
General Function:
|
Anti-Flicker, heartbeat, password protection, privacy mask, Watermark
|
|
System Compatibility:
|
ONVIF(17.2 with profile S)
|
|
On-line Viewing
|
Max. Support 2 Users Simultaneously
|
|
Interface
|
|
Communication Interface:
|
1 RJ45 10M / 100M Ethernet Interface
|
|
Audio Interface:
|
RCA Audio input/output Interface (Optional)
|
|
Alarm in/out interface：
|
Support（1ch） （Optional）
|
|
DC Power Plug:
|
DC Power Femate Interface/POE(optional)
|
|
General
|
|
Operating Conditions:
|
-10 °C ~ 60 °C
|
|
Humidity 95% or less (non-condensing)
|
|
Power Supply:
|
12 V DC ± 10%/PoE
|
|
Power Consumption:
|
12 VDC ± 10%, Max Power Comsumption Less than 8W
(When the infrared lamps turn on)
|
|
Weight:
|
0.56KG
|
