Description

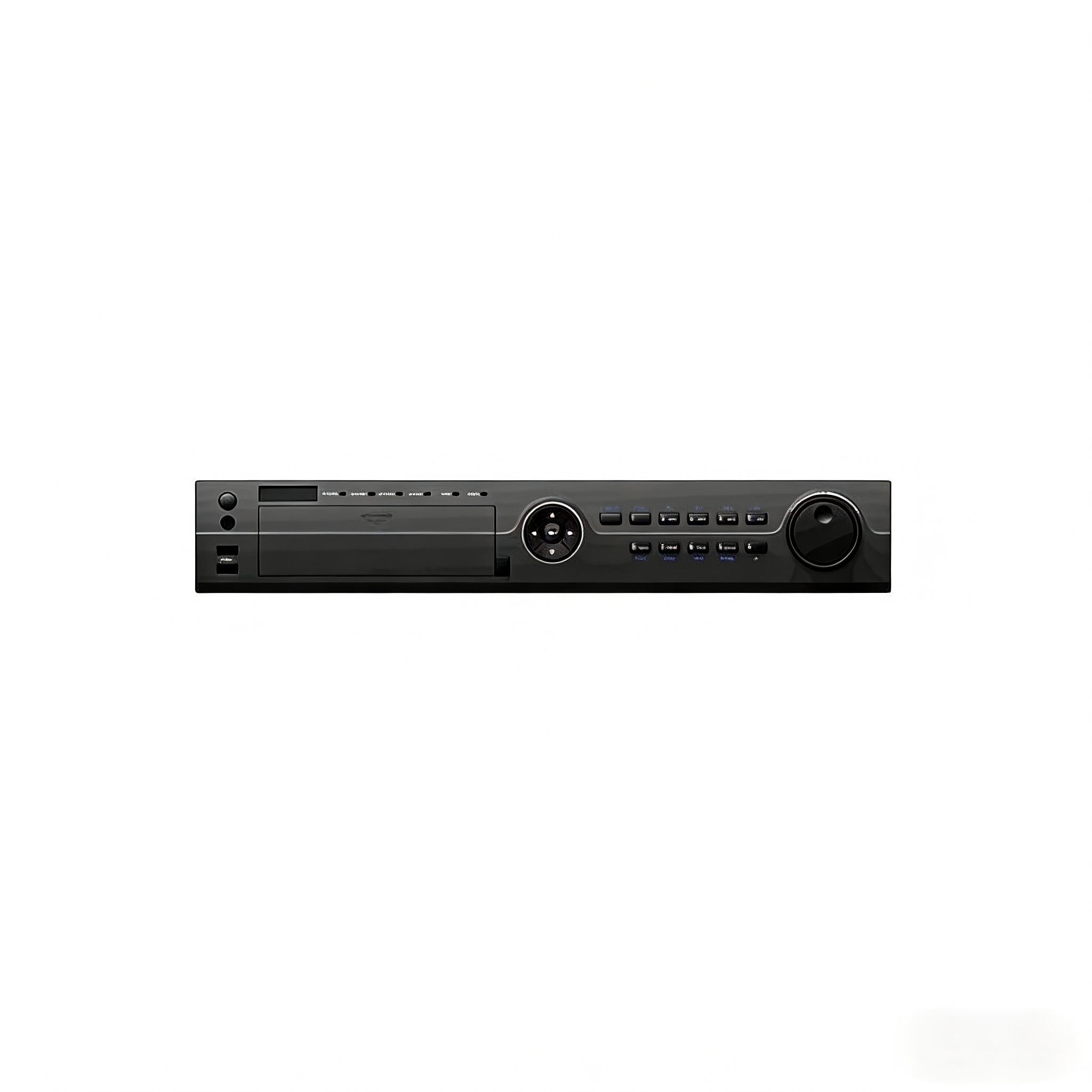

AR536-32 32CH 8 MP 4 SATA TURBO HD DVR

• Up to 32-ch analog camera inputs and 4 SATA interfaces
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
• Up to 8 MP@8 fps/5 MP@12 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Up to 64-ch network camera inputs
• POS triggered recording and POS information overlay
• RAID 0, 1, 5, 6, 10 for even more reliable data storage, effectively avoids data loss risks

  Video Compression	H.265Pro+/H.265Pro/H.265/H.264+/H.264
  Encoding Resolution	8MP/3K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
  Video Bitrate	32 Kbps to 10 Mbps
  IP Video Input	32-ch(up to 64-ch); Up to 12MP resolution; SupportH.265+/H.265/H.264+/H.264IP cameras
  Analog Video Input	32-ch; BNC interface(1.0Vp-p,75Ω),supporting coaxitron connection
  Incoming Bandwidth	320 Mbps
  Outgoing Bandwidth	256 Mbps
  HDTVI Input	8MP,3K,5MP,4MP,3MP,1080p25,1080p30,720p25,720p30,720p50,720p60
  CVBS Output	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
  VGA Output	1-ch,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz
  Video Output Mode	HDMI1/VGA simultaneous output,HDMI2/VGA independent output
  Audio Input	4-ch,RCA(2.0Vp-p,1KΩ)
  Synchronous Playback	16-ch
  HDD Support	4 HDD
  Capacity	Up to 12TB capacity for each disk
  Serial Interface	RS-232,RS-485(full-duplex),Keyboard
  USB Interface	Front panel:2×USB2.0,Rearpanel:1×USB3.0
  Power Supply	100 to 240VAC,50 to 60Hz
  Consumption	≤55W(without HDD)
  Dimension(W×D×H)	445×400×71mm(17.5×15.7×2.8inch)
  Weight	≤7kg(without HDD,15.4lb.)

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
