Description

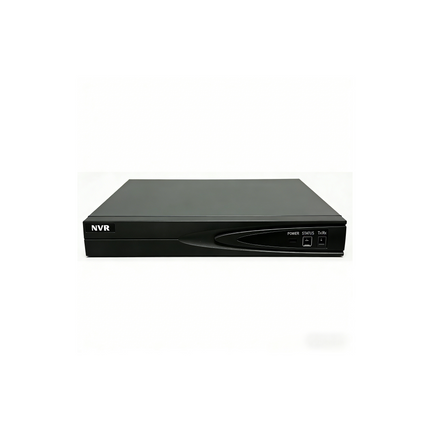

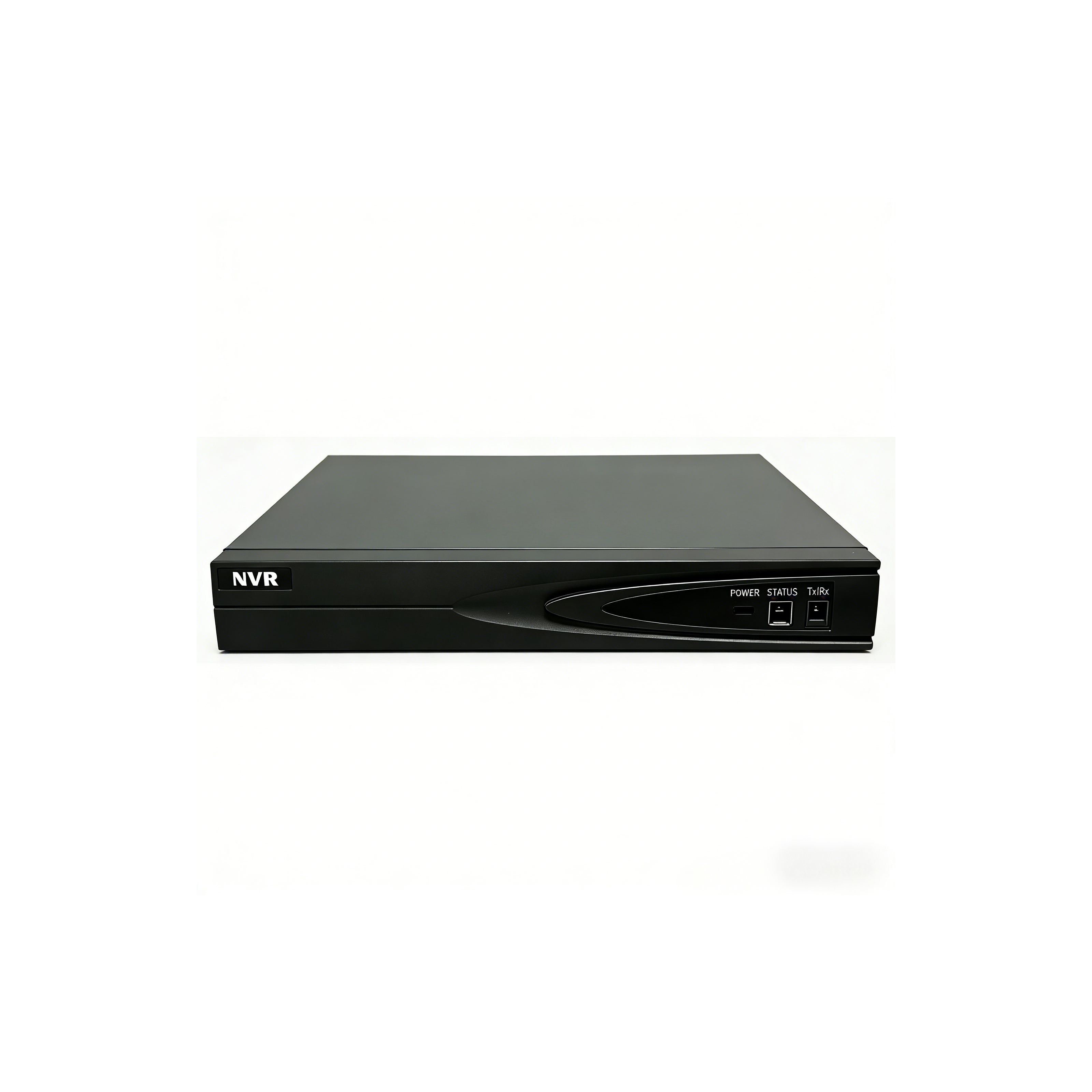

8 Channel 1U 8 PoE NVR
Key Feature
l Up to 8-ch IP camera inputs
l H.265+/H.265/H.264+/H.264 video formats
l Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
l Up to 80 Mbps incoming bandwidth
Professional and Reliability
l H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output
l Provide simultaneous HDMI and VGA outputs
l HDMI video output at up to 4K resolution
Storage and Playback
l 1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
l Smart search/smart playback to improve the playback efficiency
Smart Function
l 4-ch Motion Detection 2.0
l Support multiple VCA (Video Content Analytics) events
l Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)
Network & Ethernet Access
l 8 independent PoE network interfaces
l 1 self-adaptive 10/100 Mbps Ethernet interface
l Guarding Vision for easy network management
|
Motion Detection 2.0
|
|
Human/Vehicle Analysis
|
4-ch
|
|
Video and Audio
|
|
IP Video Input
|
8-ch
|
|
Incoming Bandwidth
|
80 Mbps
|
|
Outgoing Bandwidth
|
80 Mbps
|
|
HDMI Output
|
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
|
|
VGA Output
|
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
|
|
Video Output Mode
|
HDMI/VGA simultaneous output
|
|
Audio Output
|
1-ch, RCA (Linear, 1 KΩ)
|
|
Two-Way Audio
|
1-ch, RCA (2.0 Vp-p, 1kΩ)
|
|
Decoding
|
|
Decoding Format
|
H.265+/H.265/H.264+/H.264
|
|
Recording Resolution
|
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
|
|
Synchronous playback
|
8-ch
|
|
Decoding Capability
|
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
|
|
Stream Type
|
Video, Video & Audio
|
|
Audio Compression
|
G.711ulaw/G.711alaw/G.722/G.726
|
|
Network
|
|
Remote Connection
|
32
|
|
Network Protocol
|
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
|
|
Network Interface
|
1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
|
|
PoE
|
|
Interface
|
8-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
|
|
Power
|
≤ 75 W
|
|
Standard
|
IEEE 802.3 af/at
|
|
Auxiliary Interface
|
|
SATA
|
1 SATA interface
|
|
Capacity
|
Up to 8 TB capacity for each disk
|
|
USB Interface
|
2 × USB 2.0
|
|
Alarm In/Out
|
N/A
|
